SPECIFICATIONS

• SKU: 68208
• Model Number: HP55
• Series: H
• Operation: Push-to-Start
• Body Style: Inline
• Clutch Type: Auto Shut Off
• Torque Range – Imperial: 6.2 – 45.1 lbf.in
• Torque Range – Metric: 0.7 – 5.1 N.m
• Free Speed: 1000 RPM
• Drive Type: 1/4 Hex
• Operating Pressure – Imperial: 90 PSI
• Operating Pressure – Metric: 6.2 Bar
• Inlet Size: 1/4 NPT
• Min. Hose ID – Imperial: 45062
• Min. Hose ID – Metric: 8 mm
• Air Consumption – Imperial: 19.4 CFM
• Air Consumption – Metric: 9.17 L/sec
• Noise Level: 78 2dBA
• Length – Imperial: 8.5 in.
• Length – Metric: 215 mm
• Weight – Imperial: 1.74 lb.
• Weight – Metric: 0.8 kg
• Reversibility: Reversible
• Warranty: 1 year

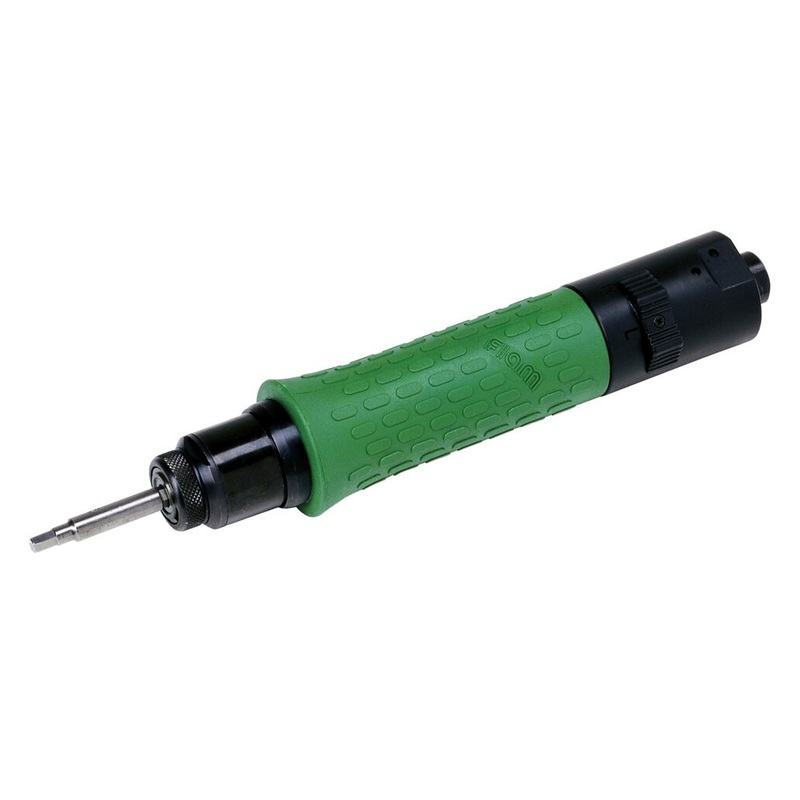

ASG H Series pneumatic screwdrivers offer a unique ergonomic thermoplastic design for comfort and gripping power. Fully reversible screwdrivers deliver full torque for tightening operations as well as fastener removal.

• Light weight, ergonomic composite housing
• Anti-tamper torque cover included as standard
• Image may vary slightly from actual product
