SPECIFICATIONS

• SKU: SCSE10R
• Model Number: SCSE10R
• Operation: Push-to-Start
• Body Style: Inline
• Clutch Type: Cushion Clutch
• Torque Range – Imperial: 13.28 – 88.5 lbf.in
• Torque Range – Metric: 1.5 – 10 N.m
• Free Speed: 500 RPM
• Drive Type: 1/4 Hex
• Inlet Size: 1/4 NPT
• Min. Hose ID – Metric: 8 mm
• Air Consumption – Imperial: 19 CFM
• Air Consumption – Metric: 9 L/sec
• Noise Level: 76 2dBA
• Length – Imperial: 8.9 in.
• Length – Metric: 226 mm
• Diameter – Imperial: 1.57 in.
• Diameter – Metric: 39.9 mm
• Weight – Imperial: 1.8 lb.
• Weight – Metric: 0.82 kg
• Reversibility: Reversible
• Warranty: 2 years

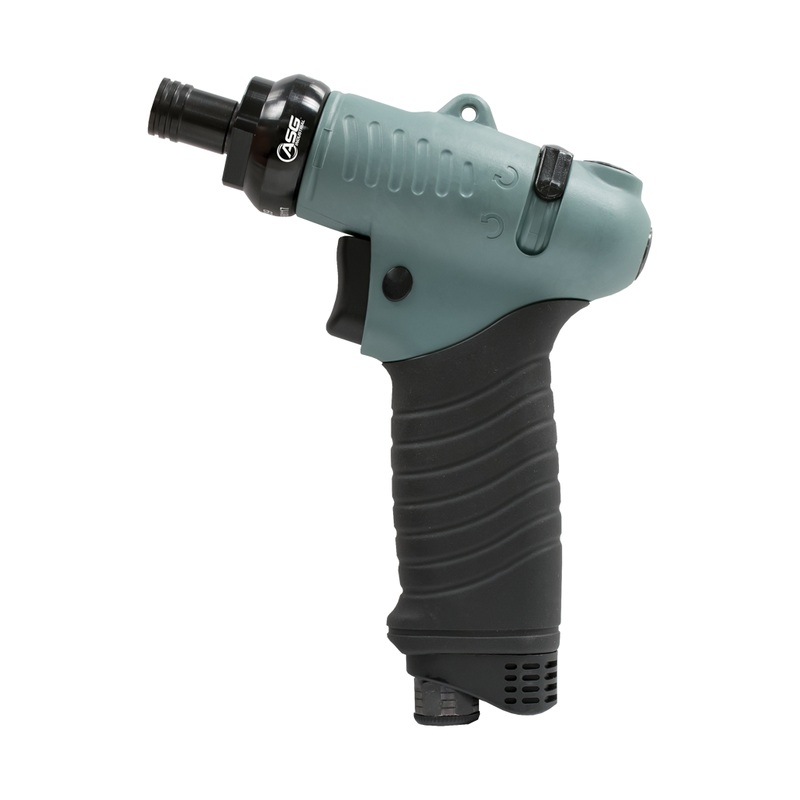

FIAM SCSE cushion clutch pneumatic screwdrivers are equipped with internal clutch adjustment. Extremely versatile due to the Uni-Jointech torque control system, these tools hold up even in the most difficult working conditions. High power to weight ratio ensures ultimate performance and optimized ergonomic design ensures operator comfort. Tools are reversible for tightening operations as well as fastener removal. Oil-less motor requires less lubrication than standard screwdrivers during operation. Ideal for users needing practicality and reliability.

• Clutch adjustment key, additional clutch spring and tool hanger included as standard
• Can be used in any field for a wide range of assembly applications such as wood furniture, plastic components, metal sheets, toys, household appliances, etc.
• Image may vary slightly from actual product
